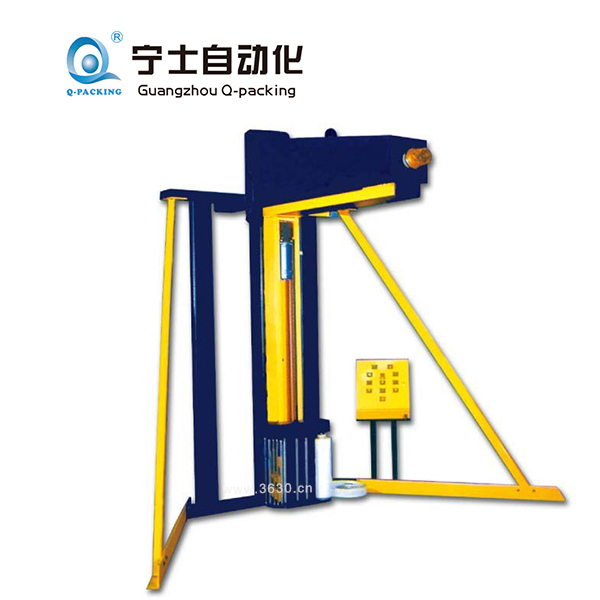

online stretch wrapping is mostly used in large output of modernize enterprise. It can realize the goods packing which is too heavy or light, auto accomplish the goods input and output sensing, packing and conveying. Conveying system you can chose strap, roller, chain etc. We can design and specially-made machines for you according to your products and requirement. It can raise packing efficiency, reduce working intension. At present, this machine has widely used in chemical, electronic, foodstuffs, papermaking etc.
Controls systems:
OMRON PLC
Photo-eye pallet height sensor
0-9 separate top ,bottom & up-down wrap count selectors
Photoeye sensing delay
Reinforce wrap allow more wrap on same location
Film Tension Control adjustment on the panel
3—15RPM arm variable a speed by frequency changer
Separate variable carriage up/down speed
Cycle pause capability
Separate start, reset and emergency stop buttons
Manual carriage up/down switch
Turntable jog button
Flash light for machine in operation
Rotary arm stop by safety bumper and reflection photoeye sensing and obstacle in the rotating area
Arm(Mast)Drive：
Slewing Bearing drive system
Soft start /stop
Position arm alignment
Film Carriage：
Powered pre-stretch system up to 200% to min film consumption(Prestretch ratio can be specially made according your requirements.)
Film delivery variable speed by separate DC Drive Motor
Film dancer-bar with variable speed output
Rotating Power slip ring provide power required for carriage drive on rotary arm.
Coveyor：
Heavy Structural steel Frame construction
All rollers driven
Heavy Duty Conveyor Guards
Conveyor length 4.2m Roller diameter:89mm Roller longth:1300mm Center distance: 114mm
Different Roller Diameters and Roller Spacing Available for a variety of applications
Conveyor Speed:12m per min(other speed available)
Photo-eye Pallet Sensing and sequencing
Specification:
MODEL | NP-AY-XB001-PL |
Wrapping size | (500-1300)mm*(500-1200)mm |
Packing height(max) | 1800mm |
Packing efficency | 40-50 loads/hour |
Turntable speed | 0-15rpm adjustable |
Turntable loading(max) | 2000kg |
Turntable height | 625mm |
Conveying speed | 1000ml/min |
Machine weight | 1200kg |
Shape dimension | 3440mm*1800mm*3220mm |
Power/voltage | 0.75kw/AC220V |
